产品-SiG61收发器

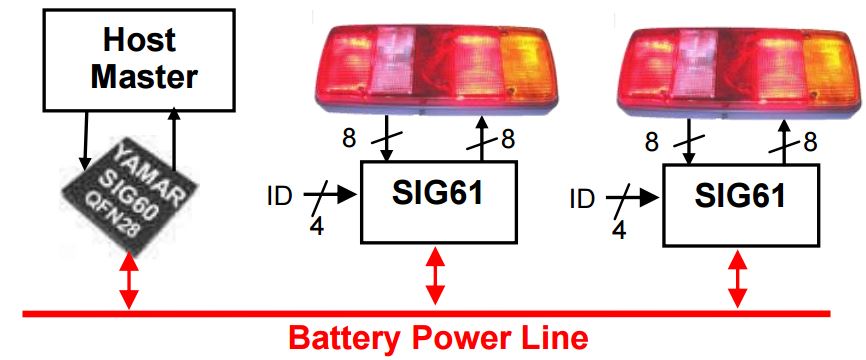

The SIG61 is an independent slave in a Powerline communication network controlled by a SIG60 master device.
SiG61在一个电力线通信网络中,是一个独立的从,它被一个主设备SiG60所控制
The SIG61 has 4 identification (ID) pins, used to set the device address, 8 input pins and 8 output pins.
SiG61有4个身份脚,用来设置器件的地址,8个输入脚,8个输出脚
The master can access any SIG61 device independently by using the proper device address. Data received from a remote SIG60 Master device is reflected to its output pins.
通过使用恰当的器件地址,主能够独立地进入任何的SiG61设备.从远端SiG60主器件收到的数据反映在其输出脚
The Master device can read the SIG61 input pins remotely. Its small footprint integrates most of the components needed for proper operation allowing small-size control solutions.
主器件能够遥控地读取SiG61输入脚 .其小尺寸集成了需要的大部分的器件用于适当的操作,使能了小尺寸控制方案.
The SIG61 is an economical slave device for applications such as controlling motors, reading sensors etc., eliminating the need for dedicated control wires and a host controller for its operation.
SiG61是一个经济型的从器件,用在控制马达,传感器读取等场合,革除了专用的控制线和用于工作的一个主控制器
It helps reducing the harness size and increase reliability. The SIG61 has a sleep mode that enables power saving; special Wakeup messages on the AC or DC line are used to signal the sleeping devices to return to normal operation mode.
它帮助降低了线束尺寸,增加了可靠性.SiG61有个睡眠模式,使能了省电 ;在AC或者DC线上的特殊的唤醒信息用来信号通知睡眠的器件回到常规工作模式
The SIG61 is useful for a wide range of Automotive, Avionics and Industrial applications such as sensor reading, actuator activation, doors, seats, mirrors, climate control, lights, Truck-Trailer, etc.
SiG61在汽车,航空和工业应用的很多范围是有用的,比如传感器读取，激励器激活，门，座椅，镜子，天气控制，灯，卡车拖车等.
特点:
7 selectable Carrier frequencies 1.75MHz - 13MHz 七个可选载波频率 1.75~13Mhz
Selectable bit rate between 9.6 Kbps to 115.2 Kbps 可选的比特率
8 output and 8 input pins 8个输入和8个输出脚
Eliminates data wires and transceiver 革除了数据线和收发器
Operates over wide range of noisy power supply / battery lines 在宽范围的噪声供电线/电池线工作
Byte oriented communication 字节为导向的通信
Sleep Mode for low power consumption 睡眠模式用于低功耗
Allows Master - Slave multiplex networks 允许主-从多路网络
Several independent networks can operate over the same wire using different carrier frequencies.使用不同的载波频率,可以将数个独立的网络在同一条线上工作
Small footprint QFN 64 pin package 64脚QFN封装
应用:
Truck-Trailer sub-bus 卡车拖车 副总线
Door module 门模块
Climate control network 天气控制网络
Front and back Lights 头灯和尾灯
Sensors Actuators network 传感器激励器网络
Entertainment control 娱乐控制
Renewal Energy / Battery management Microgrid 新能源/电池管理微电网
Security Monitoring 安全监控
