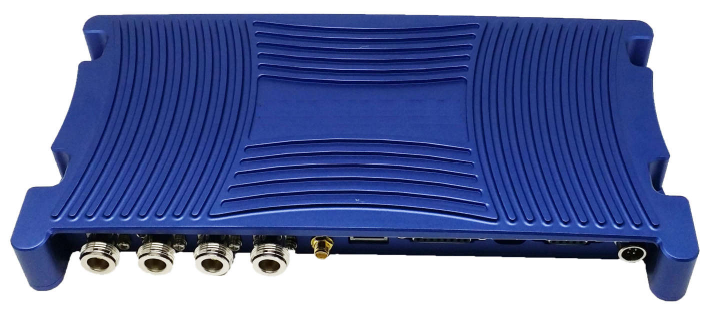

Product-DWFF42K-Fixed RFiD reader

I, Description

DW-FF42K is an UHF RFiD reader, designed with professional RF SoC R2000 based module, it has the features of long read range, fast speed and diversified interface, as well as deployment easy。It is ideal for asset tracking, merchandize inventory,goods sorting, vehicle management, personnel management, asset management, medical system, anti-pirate system and process control

II, Advantages

1,base on R2000 professional RF SoC module
2,comply with iSO18000-6C RFiD tags
3,support RFMicron temperature and moisture tags reading
4,passed the national SRRC certificate
5,working frequency 840~868MHz/902~928MHz(adjustable base on different countries & regions)
6,working mode of Frequency-Hopping Spread Spectrum（FHSS）and fixed freq radiation
7,RF output power can be 30dBm（adjustable）
8,10dBi linearly polarized antenna，can be 40 meters in best scenario
9,support four external antenna interface(TNC/N terminal optional)，support antenna auto enquiry and antenna detection function
10, tag buffering quantity can be 800 pieces( with 496 bit EPC length)
11, support command, sequence enquire and trigger mode
12, supply of ＋12V
13, support RS232、 RS485、 RJ45(TCP/IP,UDP)、Wiegand and TTL；
14, WIFI or Bluetooth interface optional；
15, support EPC、TID、USER data zone independently or combined inventory；
16, support IAP firmware upgrade
17, support IE explorer parameter configuration；
18, Windows based reader software is provided separately free of charge
19, customized client Logo engraved on top of the metal housing is possible

III, Feature(limit)

IV, Electrical Characterstics

showed spec is base on TA＝25℃ and VCC＝+12V condition, unless other special claimed
